Lisheng 4 Colors Double Face Flexo Printing Machine Roll to Roll Print

Name: Lisheng 4 Colors Double Face Flexo Printing Machine Roll to Roll Print
Brand: LISHENG
Price: 20000 USD

Wholesale Lisheng 4 Colors Double Face Flexo Printing Machine Roll to Roll Print from china suppliers

Brand Name : LISHENG

Model Number : YTB

Certification : CE

Place of Origin : CHINA

MOQ : 1set

Supply Ability : 20set/month

Delivery Time : 45days before deposit

Packaging Details : FILM PACKING

Price : USD20000-50000/SET

Payment Terms : L/C, T/T,Western Union, MoneyGram,

print color : 4

print width : 600mm 800mm 1000mm 1200mm 1400mm and more

print speed : 80-100m/min

machine speed : 120m/min

Machine frame thickness : 75mm

Heating : closed type

Automatic grade : Semi-Automatic

Type : 4 color flexo nylon flour bag printing machine/paper bag printer

Usage : Paper Printer

Weight : 5000kg

Dimensions(l*w*h) : 5.5m*2.2m*2.5m

Voltage : 220V/380V/440V

Condition : New

After-sales service provided : Engineers available to service machinery overseas

Gross power : 50kw

Warranty : 1 Year

Machine type : stack model

Application : Printing

Plate thickness : 1.7/2.28/3.84mm

Color : Multicolor,6 Color

Printing material : paper,pp,PE, PVC PP and etc,

Contact Now

4COLOR STACK TYPE FLEXO PRINTING MACHINE, SUITABLE FOR PAPER, PLASTIC FILM NON WOVEN FABRIC AND SO ON

Main parameter:

Model	YTB High speed flexographic printing machine
Material feeding stardard width	600mm,800mm,1000mm,1200mm,1400mm,1600mm
Relative max printing width	560mm,760mm,960mm,1160mm,1360mm,1560mm
Printing length	Standard is within 400mm, Customized is available from 300-1016mm (16''~40'')
Max Printing speed	100m/min according to material and print design
Max machine speed	120m/min
Register precision	±0.25mm
Color printing system	4 color (4+0,3+1,2+2)
Material	Non-woven fabric. Paper, Film (PVC. OPP. PE. BOPP. NY. PET. CPP)...
Structure type	Stack
Transmission of printing rollers	Helical gear
Machine transmission way	Synchronous belt
Drying method	Blower and heater
Max. oven temp.	Max. 80ºC(room temp. 20ºC)with temperature control system
Web fixing method for un/rewinder	Safety chuck+ Air expanding shaft
Thickness of plate (including two-sided glue paper)	1.14mm.1.7mm 2.28mm.2.84mm. 3.94mm... customized is available
Gear module	5mm
Unwinder/rewinder air shaft	core 3"
Max.unwinder/rewinder dia.	1000mm
Adhesive tape thickness for stick printing cylinder	0.38mm according to you
Suitable Ink	Water based ink / Solvent ink
Machine weight	Customized
Machine Size	Customized
HS code	8443160090

Characteristics:

Easy operation, flexible starting, accurate color register.
The meter counter can set printing quantity according to the requirements. Stop the machine automatically at the quantity or when the material is cut off.
Manual printing cylinder lift and lower, it will stir the printing ink automatically after lifting.
The printing ink is spread by the anilox cylinder with even ink color.
Reliable drying system coordinated with high-speed rotation, it will automatically break circuit when the machine stops.
360°continuous and adjustable longitudinal register device.
The frequency control of motor speed adapts to different printing speeds.
There are Jogging/Stopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.

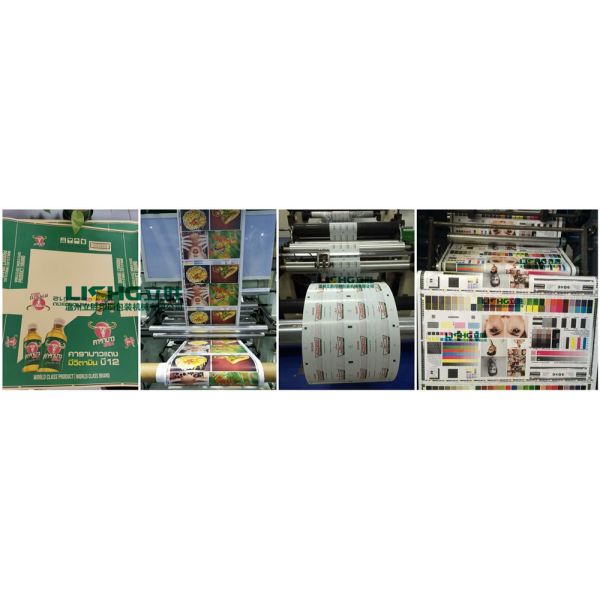

Print sample

Plastic film, like HDPE, LDPE, BOPP and so on

Paper printing, like kraft paper, coated paper, thermal paper and so on

Lisheng 4 Colors Double Face Flexo Printing Machine Roll to Roll Print

Nonwoven fabric, spunbond and so on Lisheng 4 Colors Double Face Flexo Printing Machine Roll to Roll Print

Certificate

Lisheng 4 Colors Double Face Flexo Printing Machine Roll to Roll Print

Machine in client factory

Our production dept
