EPC Control Flexo Printing Machine With Ceramic , Auto Loader
Machine Feature:
1. Take it easy, accurate color, long life.
2. Use motors, variable frequency speed control, saving electricity, small running fluctuations.
3. Off printing roll automatic stop the ink-running motor, and up-printing roll automatic start running the ink.
4. Use special diagonal-tooth gear, accurate printing size.
5. Two sets of heating devices, including central heating and constant temperature control system for group control.
6. Low-roller special steel processing, and special process, and plating thickness of 0.1mm protective layer of hard chromium.
7 Alloy roll with hard oxidation, treating by dynamic balance, static balanced.
8 With cold wind bellows, and can effectively prevent produce with ink adhesion after printing
9. Print produce are clear and good arrangement quality.
10. Bearing: NSK, Japan Brand, aluminum alloy roll
Specifications:
| Model | YTB |
| Machine Colors | 1Color – 8 Color |
| printing width | 600-3200mm |
| Printing material | Paper, Film, Non Woven Fabric and so on |
| Printing length(repeat) | 280-1000mm |
| Max. Mechanical speed | 150m/min |
| Max. Printing speed | 30-12 0m/min |
| Register precision | Longitude:±0.2 mm ; Transverse:±0.2 mm |
| Master motor power | 3.7kw, Taiwan |
| Outline size | 5.4 m×2.4 m× 2.6 m |
| Power: | 440V/380V/220V, 50/60Hz |
| Rewind/Unwind DIA | Φ 800mm (need larger, contact me) |
| Unwind way | Auto loader for unwind,
By air shaft |
| EPC system: | Edge Position Controller for unwind |
| Tension system | A utomatic tension control for unwind |
| Unwinding loading way | By air shaft , 1 pcs |
| Printing plate lifting system | Automatic Hydraulic cylinder control printing roll up and down |
| Anilox roll amd Inking way | High speed machine: ceramic anilox roller ( 1 00- 10 00lpi), C hamber doctor blade for 30-150m/min |
| Drying model | Electric heating |
| Rewind way | Surface rewind ,
By air shaft , |
| R ewinding unloading way | By air shaft , |
| Rewind material unload way | By Automatic |

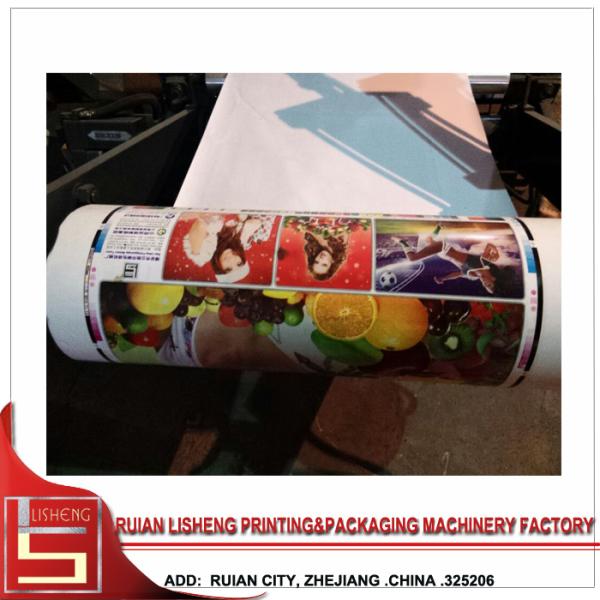

Our printing effect:
